Product number: R2ACCBGV45

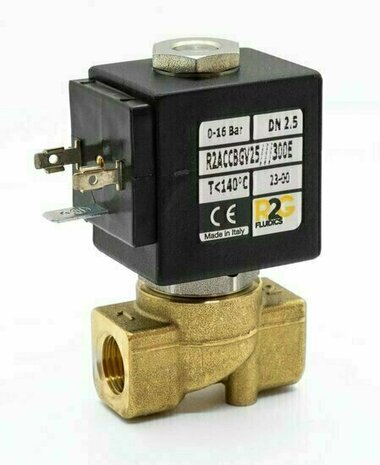

R2ACCBGV45 - Brass direct acting 2/2 solenoid valve 1/4" 0-7bar* N.C. VITON (R2ACCBGV45) This is a 2/2-way direct operated solenoid valve in Normally Closed (NC) version with connection G1/4 (DN8) in Brass CW617N. Differential pressure: 0 - 7 Bar. Seal: FKM (Viton). Direct operated: Switches from 0 Bar (no minimum differential required). Fast switching times (18 ms on / 23 ms off). Suitable for high pressures up to 100 Bar. Technical Specifications - R2ACCBGV45 Manufacturer R2G Fluidics (Italy) Series R2AC - Direct operated solenoid valve Article number R2ACCBGV45 Type 2/2-way solenoid valve, direct operated Function Normally Closed (NC) - closed when de-energised Connection G1/4 - DN8 (ISO 228) Differential pressure 0 - 7 Bar Maximum permissible pressure 100 Bar Switching times ON: 18 ms · OFF: 23 ms Body material Brass CW617N Core material (plunger) Stainless steel 430Fr Armature tube material Stainless steel AISI 303 Springs Stainless steel AISI 302 Sealing material FKM (Viton) Medium temperature range -10 / +160 °C Ambient temperature Class F: -10 / +55 °C · Class H: -10 / +80 °C Maximum viscosity 25 cSt (mm²/s) Coil connection DIN 43650A (EN 175301-803 / ISO 4400) Coil series Series 3000 (30 mm, 10 W DC) or Series 3600 (36 mm, 24 W DC) ED operation 100% (continuous operation) Protection class IP65 (with DIN plug) HS code 8481.80 - Valves for pipelines Features & Benefits R2AC - direct operated Solid industrial design with a brass CW617N body and stainless steel internal parts. Made in Italy. Universal DIN coil connection DIN 43650A connector (EN 175301-803 / ISO 4400) - compatible with all common coils Series 3000 (10 W) or 3600 (24 W). Continuous operation (100% ED) Suitable for continuously energised operation. IP65 protection with DIN plug. FKM seal Medium temperature range: -10 / +160 °C. Suitable for various liquids and gases within the viscosity limit of 25 cSt. Application areas Process automation and machine building. Pneumatic and hydraulic installations. Water and air pipes, cooling systems. Packaging machines and industrial automation. Cleaning installations and dosing systems. High-pressure applications to 100 Bar (depending on orifice). Installation advice Preferably mount the valve with the coil vertically upwards. Before installation, check that the medium is compatible with the selected sealing material. Above 80 °C ambient temperature, consult our technical department first. For industrial oxygen applications, use an FKM seal and degreased version (max. 25 Bar). Industries Frequently applied in: Drinking water supply & distribution Heating, sanitary & HVAC Building services & installation Light industrial processes Industrial automation & dosing OEM machinery Product documentation (datasheet) Technical datasheet for R2ACCBGV45: PDFProduct datasheetOfficial manufacturer documentationDOWNLOAD PDF Questions or need advice? Feel free to contact ADL Appendages: info@adl.nu · 0314-641774
This is a 2/2-way direct operated solenoid valve in Normally Closed (NC) version with connection G1/4 (DN8) in Brass CW617N. Differential pressure: 0 - 7 Bar. Seal: FKM (Viton).
Preferably mount the valve with the coil vertically upwards. Before installation, check that the medium is compatible with the selected sealing material. Above 80 °C ambient temperature, consult our technical department first. For industrial oxygen applications, use an FKM seal and degreased version (max. 25 Bar).
Frequently applied in:
Technical datasheet for R2ACCBGV45:
