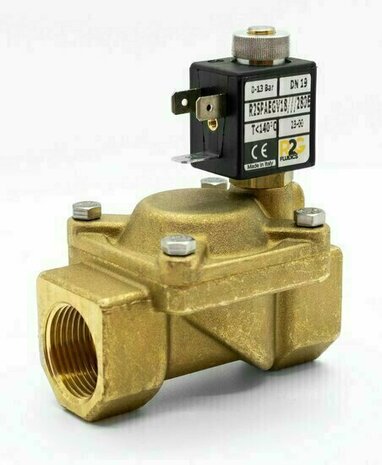

R2SPADGB12/A - Brass pilot operated solenoid valve 1/2" 0,15/16bar N.O. NBR

Brass pilot operated solenoid valve 1/2" 0,15/16bar N.O. NBR from R2G. Solenoid valve for industrial applications.
excl. btw incl. btw
Order

Product number: R2SPADGB12/A
stock: 16
Shipping costs € 7,95
Default delivery time Op aanvraag
Ordered before 14:00, shipped the same day (if in stock)!
30 years of product knowledge
Customized solutions
Productvarianten: R2SPADGB12/A - Brass pilot operated solenoid valve 1/2" 0,15/16bar N.O. NBR
R2SPADGB12/A - Messing indirect gest. magneetventiel 1/2" 0,15/16bar N.O. NBR
R2SPAFGB25/A - Messing indirect gest. magneetventiel 1" 0,15/10bar N.O. NBR
R2SPAEGB18/A - Messing indirect gest. magneetventiel 3/4" 0,15/14bar N.O. NBR
R2SPACGB12/A - Messing indirect gest. magneetventiel 3/8" 0,15/16bar N.O. NBR
R2SRCIGB50 - Messing indirect gest. magneetventiel 2" 0,15/10bar N.C. NBR
  • Beschrijving
  • Reviews
  • Bijlagen
  • Trefwoorden

Product description

R2SPADGB12/A - Brass pilot operated solenoid valve 1/2" 0,15/16bar N.O. NBR

This is a 2/2-way indirect operated solenoid valve in Normally Open (NO) version with connection G1/2 (DN15) in Brass CW617N. Differential pressure: 0,15 - 16 Bar. Seal: NBR (Buna).

R2SPADGB12/A - Technical Specifications

Manufacturer R2G Fluidics (Italy)
Series R2SP/R2SR - Indirect operated solenoid valve
Type 2/2-way solenoid valve, indirect operated
Function Normally Open (NO) - open when de-energised
Connection G1/2 - DN15 (ISO 228)
Differential pressure 0,15 - 16 Bar
Maximum permissible pressure 26 Bar
Switching times ON: 30-50 ms · OFF: 50-80 ms
Body material Brass CW617N
Core material (plunger) Stainless steel 430Fr
Armature tube material Stainless steel AISI 303
Springs Stainless steel AISI 302
Sealing material NBR (Buna)
Medium temperature range -10 / +90 °C
Ambient temperature Class F: -10 / +55 °C · Class H: -10 / +80 °C
Maximum viscosity 25 cSt (mm²/s)
Coil connection DIN 43650A (EN 175301-803 / ISO 4400)
Coil series Series 3000 (30 mm, 10 W DC) or Series 3600 (36 mm, 24 W DC)
ED operation 100% (continuous operation)
Protection class IP65 (with DIN plug)
HS code 8481.80 - Valves for pipelines

Features & Benefits

R2SP - indirect operated Solid industrial design with a brass CW617N body and stainless steel internal parts. Made in Italy.
Universal DIN coil connection DIN 43650A connector (EN 175301-803 / ISO 4400) - compatible with all common coils Series 3000 (10 W) or 3600 (24 W).
Continuous operation (100% ED) Suitable for continuously energised operation. IP65 protection with DIN plug.
NBR seal Medium temperature range: -10 / +90 °C. Suitable for various liquids and gases within the viscosity limit of 25 cSt.

Application areas

  • Process automation and machine building.
  • Pneumatic and hydraulic installations.
  • Water and air pipes, cooling systems.
  • Packaging machines and industrial automation.
  • Cleaning installations and dosing systems.

Installation advice

Preferably mount the valve with the coil vertically upwards. Before installation, check that the medium is compatible with the selected sealing material. Above 80 °C ambient temperature, consult our technical department first. For industrial oxygen applications, use an FKM seal and degreased version (max. 25 Bar).

Industries

Frequently applied in:

  • Drinking water supply & distribution
  • Heating, sanitary & HVAC
  • Building services & installation
  • Light industrial processes
  • Industrial automation & dosing
  • OEM machinery

Product documentation (datasheet)

Technical datasheet for :

PDFProduct datasheetOfficial manufacturer documentationDOWNLOAD PDF
