2561112H302 - Description

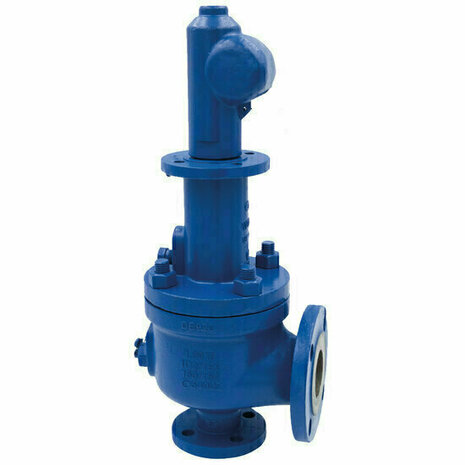

The Steel safety valve (ANSI flange) 2561 DN40 type H 0,3-19,7 bar instelbaar is from manufacturer SFRC. Spring-loaded safety valve, steel A216-WCB, ANSI flange API 526, connection ANSI 150 flange.
A safety valve (pressure relief valve) protects installations, tanks and pipelines against impermissible overpressure. When the set pressure is reached, the spring-loaded valve opens automatically and relieves the overpressure; as soon as the pressure returns to normal, the valve closes by itself.
The set pressure (bar) is adjusted per unit to the desired value. Specify the desired set pressure when ordering (range 0,3-19,7 bar adjustable).
About SFRC: SFRC supplies valves, pressure protection and fittings for industry, water supply and HVAC. ADL Appendages supplies the programme in the Benelux.
Technical specifications -
| Manufacturer | SFRC |
|---|
| Product Description | - Steel safety valve (ANSI flange) 2561 DN40 type H 0,3-19,7 bar instelbaar |
|---|
| Product Type | Spring-loaded safety valve, steel A216-WCB, ANSI flange API 526 |
|---|
| Series / model | 2561 |
|---|
| Body material | steel A216-WCB |
|---|
| Size | DN40 |
|---|
| Connection | ANSI 150 flange |
|---|
| Type | type H |
|---|
| Set pressure | 0,3-19,7 bar adjustable |
|---|
| Design | Spring-loaded, automatically closing; supplied with a setting certificate |
|---|
| Weight | on request |
|---|
| HS Code (TARIC) | 84814010 |
|---|
| Country of Origin | PL |
|---|
| EAN | 3664446614534 |
|---|
Available set pressures & article numbers
This safety valve is available per set pressure. Choose the desired set pressure; each article number is supplied set to that pressure.
| Set pressure | Article number | Price |
|---|
| 0,3-0,5 bar | | € 2481,09 |
| 0,4-0,7 bar | 2561112H303 | € 2481,09 |
| 0,6-1,1 bar | 2561112H304 | € 2481,09 |
| 0,9-1,8 bar | 2561112H305 | € 2481,09 |
| 2,6-3,7 bar | 2561112H307 | € 2481,09 |
| 3,4-4,7 bar | 2561112H308 | € 2481,09 |
| 4-6,10 bar | 2561112H309 | € 2481,09 |
| 6-8 bar | 2561112H310 | € 2481,09 |
| 7,5-10 bar | 2561112H311 | € 2481,09 |
| 9-12 bar | 2561112H312 | € 2481,09 |
| 11-15,5 bar | 2561112H313 | € 2481,09 |
| 14-18 bar | 2561112H314 | € 2481,09 |
| 16-19,7 bar | 2561112H315 | € 2481,09 |
Features & Benefits
Automatic protectionOpens at overpressure and closes again as soon as the pressure returns to normal.
Custom set pressureAvailable per set pressure; order with the desired bar value.
With certificateSupplied with a setting certificate of the set pressure.
steel A216-WCB versionRobust material, suitable for the application.
Applications (applications)
Suitable for, among others:- Compressed air installations
- Steam and heating systems
- Pressure vessels and boilers
- Process pipelines (liquid, gas)
- Protection against overpressure
