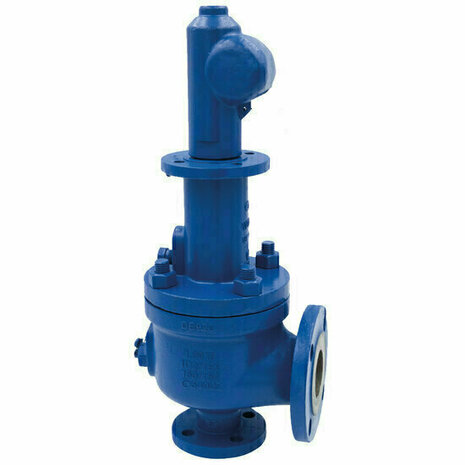

The Steel safety valve (ANSI flange) 2561 DN40 type H 1,7-2,7 bar instelbaar is from manufacturer SFRC. Spring-loaded safety valve, steel A216-WCB, ANSI flange API 526, connection ANSI 150 flange.
A safety valve (pressure relief valve) protects installations, tanks and pipelines against impermissible overpressure. When the set pressure is reached, the spring-loaded valve opens automatically and relieves the overpressure; as soon as the pressure returns to normal, the valve closes by itself.
The set pressure (bar) is adjusted per unit to the desired value. Specify the desired set pressure when ordering (range 1,7-2,7 bar adjustable).
About SFRC: SFRC supplies valves, pressure protection and fittings for industry, water supply and HVAC. ADL Appendages supplies the programme in the Benelux.
Automatic protectionOpens at overpressure and closes again as soon as the pressure returns to normal.
Custom set pressureAvailable per set pressure; order with the desired bar value.
With certificateSupplied with a setting certificate of the set pressure.
steel A216-WCB versionRobust material, suitable for the application.
