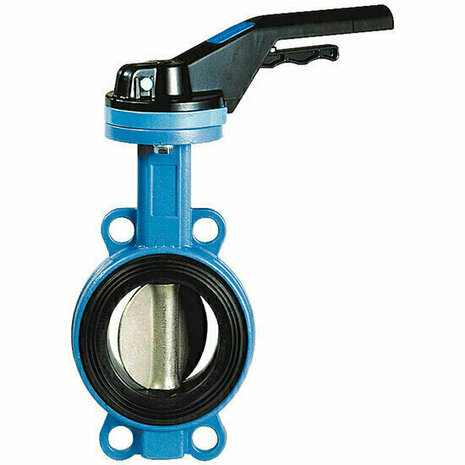

1151080FD - Cast iron butterfly valve wafer 1151FD DN80 PN16 ANSI150 NBR

Cast iron butterfly valve wafer 1151FD DN80 PN16 ANSI150 NBR from SFRC. Butterfly valve for industrial applications.
€ 305,48 excl. VAT
€ 369,63 incl. VAT
Order

Product number: 1151080FD

EAN: 3598781272879
Shipping costs € 7,95
Default delivery time Op aanvraag
Ordered before 14:00, shipped the same day (if in stock)!
30 years of product knowledge
Customized solutions
  • Beschrijving
  • Reviews
  • Bijlagen
  • Trefwoorden

Product description

1151080FD - Cast iron butterfly valve wafer 1151FD DN80 PN16 ANSI150 NBR

1151080FD - Description

The Cast iron butterfly valve wafer 1151FD DN80 PN16 ANSI150 NBR is a wafer- butterfly valve from manufacturer SFRC. Design: housing nodular cast iron EN-GJS-500-7 (GGG50); disc Stainless steel CF8M (1.4408); seat NBR; Pressure class PN16 ANSI150.

A butterfly valve regulates or closes the flow af with a disc which om a central as rotates. With a quarter-turn (90°) goes the valve fully open or closed - compact, light and quickly te operate.

About SFRC: SFRC is a European supplier of industrial valves and fittings for industry, water supply and HVAC. ADL Appendages supplies the SFRC-range in the Benelux.

Technical Specifications -

ManufacturerSFRC
Product Description - Cast iron butterfly valve wafer 1151FD DN80 PN16 ANSI150 NBR
Product TypeButterfly valve (wafer)
DesignWafer
Housing Materialnodular cast iron EN-GJS-500-7 (GGG50)
DiscStainless steel CF8M (1.4408)
SeatNBR
SizeDN80
Pressure ClassPN16 ANSI150
OperationHand operated (lever/gearbox to depending on size)
Food-designJa (CE 1935/2004 food-design)
Weight4.4600 kg
HS Code (TARIC)84818085
Country of OriginES
EAN3598781272879
ConformityCompliant with PED 2014/68/EU; CE 1935/2004 (food)

Features & Benefits

Compact constructionLightweight lap joint flange-design, short installation length t.o.v. others valves.
Seat NBRMatched to the medium for a reliable seal.
Wafer-designClamps between two flanges - simple, cost-efficient installation.

Applications

Suitable for, among others:
  • Water supply and process water
  • HVAC, cooling- and heating circuits
  • Industrial process installations
  • Control and shut-off of larger pipe diameters
  • Foodstuffs / hygienic applications

Industries

Typically used in:

  • Municipal water & wastewater
  • Irrigation & water management
  • HVAC & district heating
  • Fire-protection systems
  • Large-diameter water distribution
  • HVAC & cooling circuits
