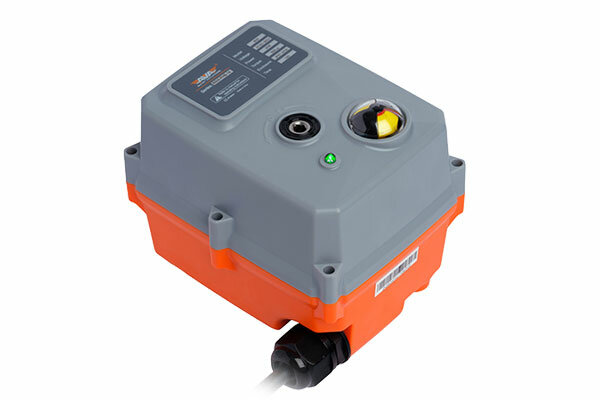

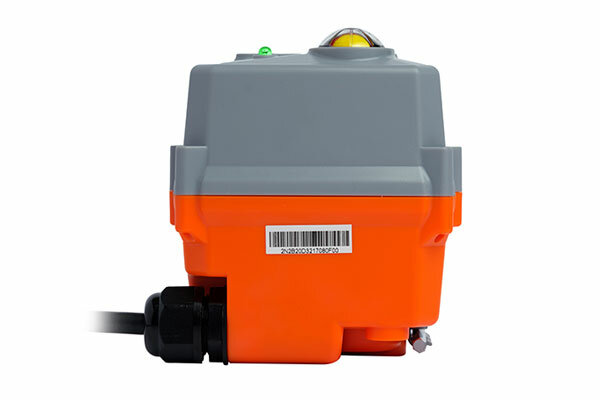

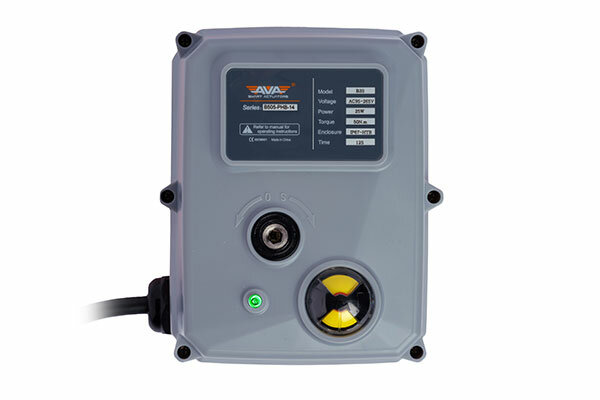

AVA B50 - Basic Actuator
0 Review | Review toevoegen
Basic | 50Nm

Artikelnummer

B50

Verzendkosten

€ 15,00

Standaard levertijd

Op aanvraag

€ 398,00
excl. btw
€ 481,58
incl. btw
Aantal:
Bestellen


Technical Specifications

IP67 / NEMA 4X 0–270° 24 VAC/DC · 95–265 VAC · 12 VDC BASIC SERIES
Rated Torque Nm (in.lbs) 60 Nm Break (532) / Run 50 Nm (443)
Enclosure PC+PET Plastic Housing ** — IP67 / NEMA 4X
ISO 5211 F05/07 × 14 mm
Output Drive 14 mm
LED Status Light Yes, RGB Open, Close, Alarm
Voltage Range 24 VAC/DC, 95–265 VAC, 12 VDC
Run Time (no load) 10–12 seconds
Connecting Cable 0.8 m pre wired, AC300V rated, 7 core*
Weight 1.84 kg (plastic) / 2.1 kg (aluminium)
Working Angle Range 0–270 degrees. Set via internal cams.
Temperature Range −20 °C to +80 °C ***
Duty Cycle 75% rated
Shock Resistance < 300 m/s²
Sound Power Level Max 50 dB(A)
Vibration Rating 10 to 55 Hz, 1.5 mm double amplitude
Position Indicator Mechanical Dome Window
Installation Vertical/Horizontal – not underslung
Withstand Voltage 500 VAC for 1 minute
Maintenance Maintenance Free – do not remove cover
Insulation Resistance 100 MΩ / 500 VDC
Approvals TUV CE & EMC Certified, REACH, RoHS****
Explosion Proof No, not to be used in a hazardous location. Can only be used in safe area applications.

Notes

Standard cable length * Standard cable length is 0.8 m. We can supply extended cables to the required length. Note cable extension at additional cost.
Housing material ** PC+PET plastic material for cover is replacing our current standard of ABS. All actuators will be PC+PET if plastic. Aluminium cover also available.
Low temperature option *** We can extend the lower temperature range through special lubricant and grease and upgraded heater system. Speak to your sales representative.
Upcoming approvals **** AVA has began the process to have all of our electric actuators approved for UL and CSA.
LED / 1-second operation For single voltage actuators, the actuator will not have an LED light. For multi voltage actuators the LED is standard. For 1 second operation, this is only available with 24VDC single voltage motor. All actuators are as standard supplied with a heater.

BASIC SERIES

  • 50 Nm torque output makes the Series 50 perfect for slightly larger size ball valves and butterfly valves.
  • Multi Voltage 24VAC/DC or 95-265VAC voltage range, reducing stock required to be held to cover possible on site voltages.
  • Fast Acting option of 1 second version available when operating on 24VDC motor. Standard run time is around 12 seconds.
  • Available with internal super capacitor fitted for Failsafe functionality.
  • Now available with the option of 17 mm output drive.

Main Ordering Codes for Basic Series

* indicates standard options for stock product. Example: B506-PHB-14.
Series > Function > Voltage > Housing > Heater > Wiring > Output Drive >

Onderdeel Code Omschrijving
Series B Basic
Function 50 On Off
Function (alternative) 54 Failsafe
Function (alternative) 519 Hi Speed
Voltage 1 220 VAC
Voltage 2 110 VAC
Voltage 3 24 VAC
Voltage 4 24 VDC
Voltage 5 95–265 VAC*
Voltage 6 24 VAC/DC*
Voltage 7 12 VDC
Housing P PC+PET*
Housing (alternative) A Aluminium
Heater H Included*
Heater (alternative) 0 Without
Wiring A 3 wire SPST
Wiring (alternative) B 3 wire SPDT*
Wiring (alternative) G 2 wire
Output Drive 14 14 mm*
Output Drive (alternative) 17 17 mm

Artikelnr. overzicht

Artikelnr. Voltage Versie Power Snelheid
B5010-5PHB-14 95-265VAC/DC ON OFF 25W 12s
B5010-6PHB-14 24VAC/DC ON OFF 25W 12s
B5010-7PHB-14 12VDC ON OFF 25W 12s
B5014-5PHB-14 95-265VAC/DC FAILSAFE 40W 12s
B5014-6PHB-14 24VAC/DC FAILSAFE 40W 12s
B5019-5PHB-14 95-265VAC/DC HI SPEED 40W 1s
B5019-6PHB-14 24VAC/DC HI SPEED 40W 1s
